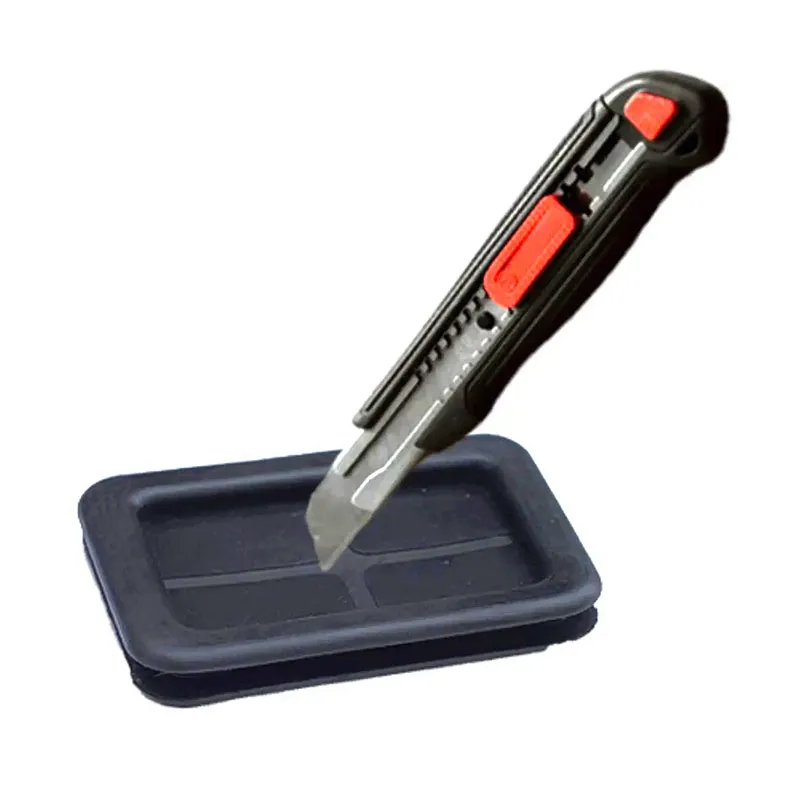

Rectangular Rectangle Grommet
These rectangular grommet have a diaphragm in the middle, which is stuck on the metal plate, and wires are inserted in the middle to protect the wires from being cut by the metal plate.
Description
Rectangular rectangle grommet
| Material | Rubber |
| Shape | Rectangular |
| Style | With diaphragm |
| OEM/ODM | Welcome! |
These rectangular grommet meet the requirements of environmental protection ROHS, REACH, and can meet the flame retardant level UL94-V0 in special electronic instruments and equipment.
| P/N | Outer length | Outer width | Hole length | Hole width | Inner length | Inner width | Groove |
| A | B | C | D | E | F | G | |
| 30*50 | 55mm | 35mm | 50mm | 30mm | 45mm | 25mm | 2mm |
| 40*60 | 70mm | 50mm | 60mm | 40mm | 53mm | 33mm | 4mm |
| 35*120 | 127mm | 45mm | 120mm | 35mm | 112mm | 29mm | 2mm |
| 45*135 | 143mm | 54mm | 135mm | 45mm | 129mm | 40mm | 2mm |
| 170*220 | 240mm | 180mm | 220mm | 170mm | 214mm | 155mm | 4.5mm |
How to choose a grommet
When selecting the thread protector, please focus on the three dimensions of the opening size (C&D) and the groove (G) of the panel, because this is matched with the hole size and the thickness of the metal plate.
